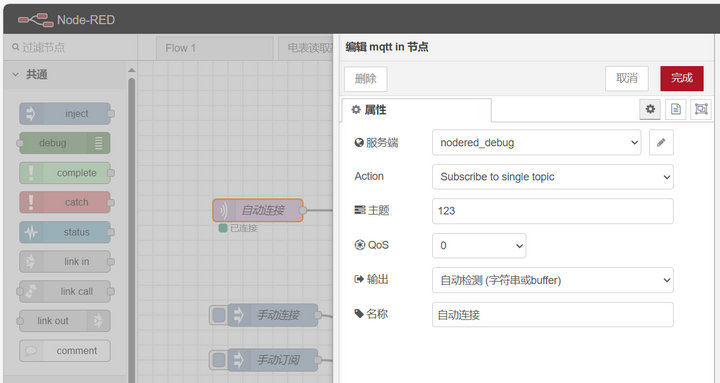

非動態連接的“MQTT IN”不支持輸入，需要完整配置連接參數以及訂閱地址；

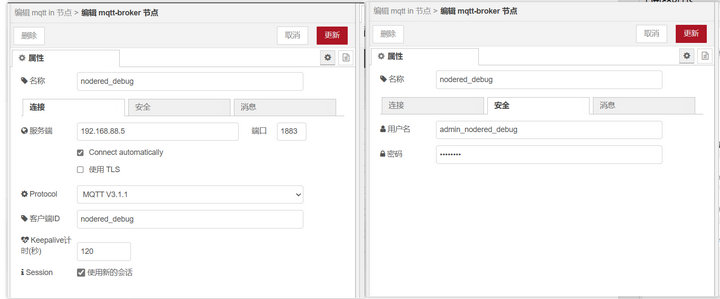

配置連接MQTT服務器認證參數；

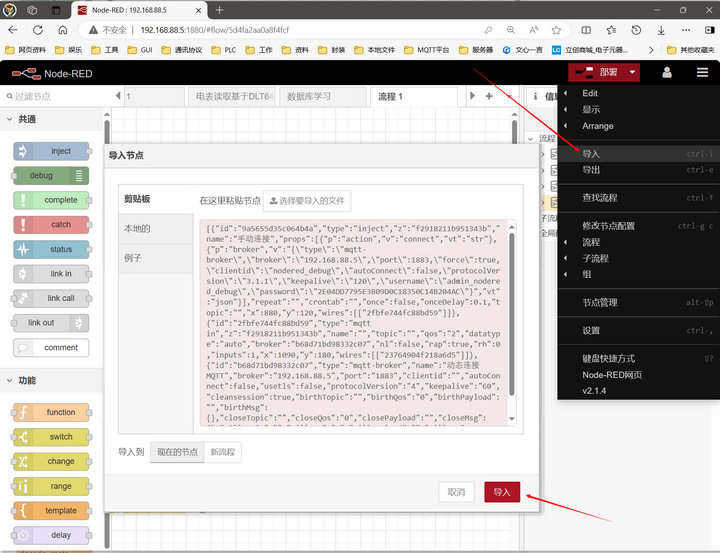

復制下段JSON文本到Node-RED導入窗口，防止參數輸入錯誤導致連接失?。?/span>
[{"id":"9a5655d35c064b4a","type":"inject","z":"f2918211b951343b","name":"手動連接","props":[{"p":"action","v":"connect","vt":"str"},{"p":"broker","v":"{\"type\":\"mqtt-broker\",\"broker\":\"192.168.88.5\",\"port\":1883,\"force\":true,\"clientid\":\"nodered_debug\",\"autoConnect\":false,\"protocolVersion\":\"3.1.1\",\"keepalive\":\"120\",\"username\":\"admin_nodered_debug\",\"password\":\"2E04DD7795E3B09D0C18350C14B204AC\"}","vt":"json"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","x":880,"y":120,"wires":[["2fbfe744fc88bd59"]]},{"id":"2fbfe744fc88bd59","type":"mqtt in","z":"f2918211b951343b","name":"","topic":"","qos":"2","datatype":"auto","broker":"b68d71bd98332c07","nl":false,"rap":true,"rh":0,"inputs":1,"x":1090,"y":180,"wires":[["23764904f218a6d5"]]},{"id":"b68d71bd98332c07","type":"mqtt-broker","name":"動態連接MQTT","broker":"192.168.88.5","port":"1883","clientid":"","autoConnect":false,"usetls":false,"protocolVersion":"4","keepalive":"60","cleansession":true,"birthTopic":"","birthQos":"0","birthPayload":"","birthMsg":{},"closeTopic":"","closeQos":"0","closePayload":"","closeMsg":{},"willTopic":"","willQos":"0","willPayload":"","willMsg":{},"sessionExpiry":""}]

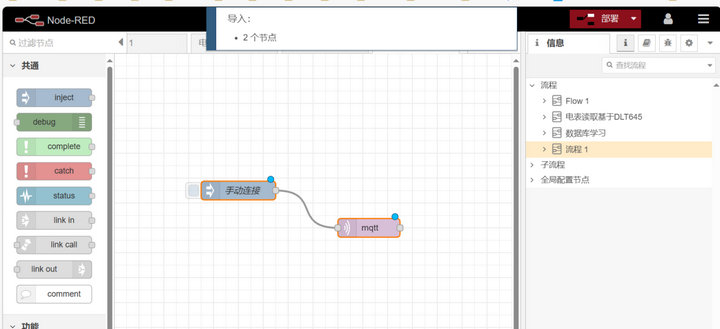

導入完成后會輸出成功日志如下圖。

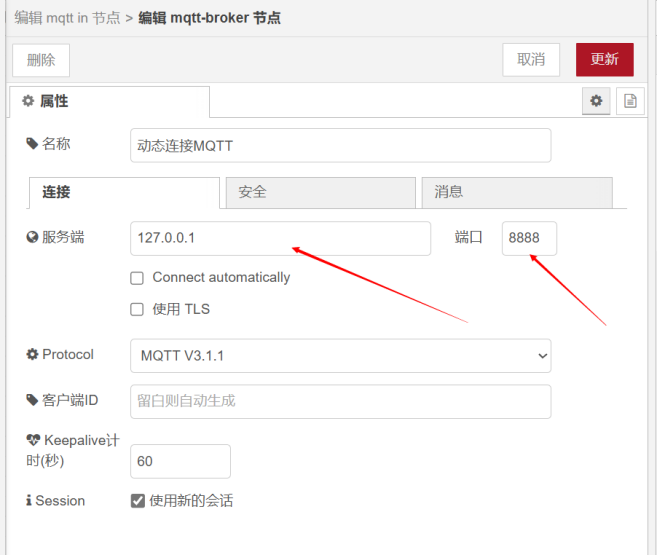

打開剛才導入的“MQTT IN”節點，與常規連接一樣，使用動態連接也需要配置一個用于存儲動態連接參數的空間，需要配置一個空的“服務端”，可以像我一樣將IP地址配置為127.0.0.1，端口為8888（也可以為其他任意值，不能為空，其余參數可以為空），實際節點在連接時不會優先使用輸入的參數而是使用傳入的參數連接（導入的“手動連接”JSON中對應的字段參數），缺少的參數會采用此處默認參數（根據說明得出，并未實際測試），需要注意使用動態連接節點應當通過上一節點驅動而不是底層自動驅動因此需要取消勾選“Connect automatically”屬性；
打開導入的“手動連接”，一共配置了兩個字段，一個用于存在請求信息（msg.action，相當于告知MQTT IN節點應當如何解析數據），一個用于存儲連接參數（msg.broker）；
msg.action支持一下功能：
“connect”，連接請求，用于告知MQTT IN節點使用msg.broker參數連接服務器；
“subscribe”，訂閱請求，用于告知MQTT IN節點使用msg.topic訂閱服務器的主題；
“unsubscribe”，取消訂閱，與“subscribe”對應使用，取消主題的訂閱；
“disconnect”，斷開服務器連接；

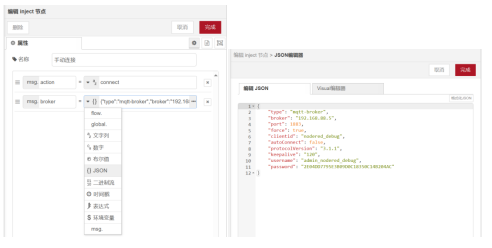

這里先說明“connect”方式需要的參數，需要見參數存在broker字段，因此需要選擇使用JOSN，如下圖所示：
“type”，用于標記參數，可以任意配置，也可缺省；
“broker”，用于存儲MQTT服務器地址；
“port”，用于存儲MQTT服務器端口；
“force”，強制斷開連接，一般使能，缺省為失能，可能返回錯誤（沒有斷開服務器連接時再次請求連接）；
“clientid”，MQTT連接三要素的客戶端ID；
“autoConnect”，自動連接使能，建議關閉，避免發生錯誤；
“protocolVersion”，MQTT連接的版本；
“keepalive”，MQTT的?；钚奶ㄗh配置為120；
“username”，MQTT連接三要素的用戶名；
“password”，MQTT連接三要素的密鑰；

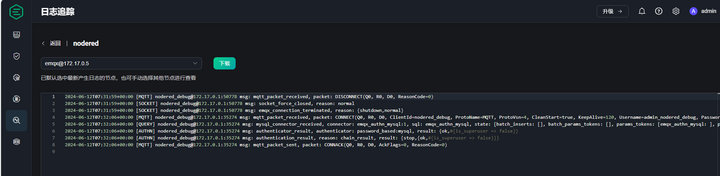

配置以上參數MQTT動態連接即可實現，下面是連接的服務器日志，由于添加了數據庫認證會比無認證的多幾個認證日志；

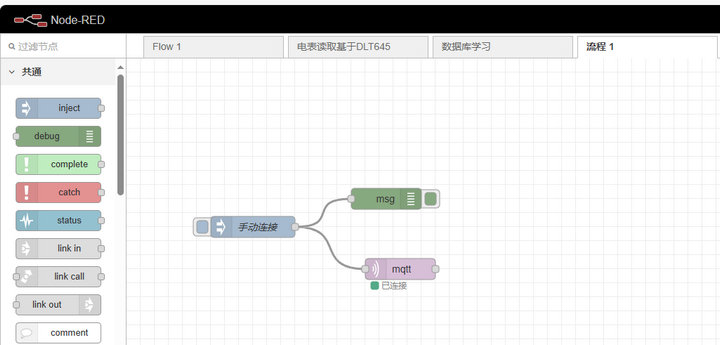

點擊觸發后“MQTT IN”節點會提示已連接；

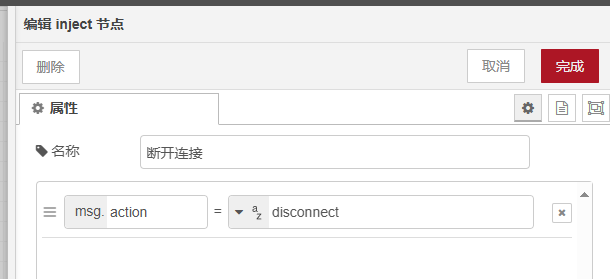

斷開連接就要比連接要簡單的多，只要傳入請求方式“msg.action”等于“disconnect”，Node-RED上面會連接很多的MQTT服務器，斷開對應的連接就需要再次使用到上面配置的“空服務器”；

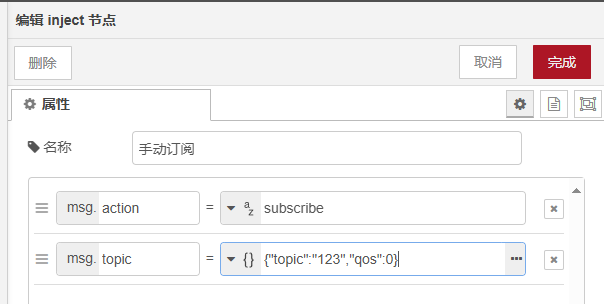

上面已經提到訂閱請求需要配置“msg.action”為“subscribe”，這是不在使用“broker”存儲參數，而是使用“topic”存儲，這里的topic需要存儲連個信息一個是訂閱的地址（msg.topic.topic），一個是訂閱的等級（msg.topic.qos），如下圖：
取消訂閱只需要令“msg.action”為“unsubscribe”，其余與訂閱一致；

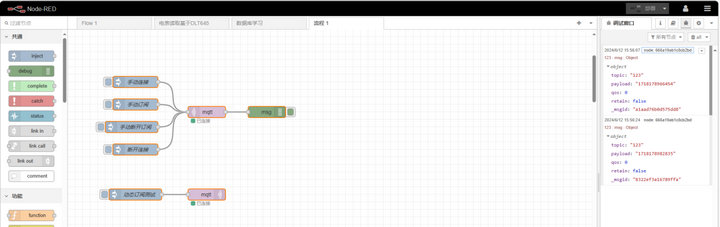

使用動態連接方式連接自建MQTT服務器，并通過“123”主題回傳當前時間戳測試；
Debug調試窗口輸入時間戳，動態連接訂閱有效；
MQTT服務器調試日志：
筆者工程文件如下，導入Node-RED使用：
[{"id":"a906262bda80a272","type":"inject","z":"5d4fa2aa0a8f4fcf","name":"手動連接","props":[{"p":"action","v":"connect","vt":"str"},{"p":"broker","v":"{\"type\":\"mqtt-broker\",\"broker\":\"192.168.88.5\",\"port\":1883,\"force\":true,\"clientid\":\"nodered_debug\",\"autoConnect\":false,\"protocolVersion\":\"3.1.1\",\"keepalive\":\"120\",\"username\":\"admin_nodered_debug\",\"password\":\"2E04DD7795E3B09D0C18350C14B204AC\"}","vt":"json"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","x":180,"y":440,"wires":[["ce21e6f7efcbbea1"]]},{"id":"ce21e6f7efcbbea1","type":"mqtt in","z":"5d4fa2aa0a8f4fcf","name":"","topic":"","qos":"2","datatype":"auto","broker":"b68d71bd98332c07","nl":false,"rap":true,"rh":0,"inputs":1,"x":370,"y":520,"wires":[["666a19ab1c8cb2bd"]]},{"id":"666a19ab1c8cb2bd","type":"debug","z":"5d4fa2aa0a8f4fcf", "name":"","active":true,"tosidebar":true,"console":false,"tostatus":false,"complete":"true","targetType":"full","statusVal":"","statusType":"auto","x":530,"y":520,"wires":[]},{"id":"553cee9604c2a8ff","type":"inject","z":"5d4fa2aa0a8f4fcf","name":"斷開連接","props":[{"p":"action","v":"disconnect","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay": 0.1,"topic":"","x":180,"y":620,"wires":[["ce21e6f7efcbbea1"]]},{"id":"07a0589c3a502788","type":"inject","z":"5d4fa2aa0a8f4fcf","name":"手動訂閱","props":[{"p":"action","v":"subscribe","vt":"str"},{"p":"topic","v":"{\"topic\":\"123\",\"qos\":0}","vt":"json"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","x":180,"y":500,"wires":[["ce21e6f7efcbbea1"]]},{"id":"d81035879f55d047","type":"inject","z":"5d4fa2aa0a8f4fcf","name":"手動斷開訂閱","props":[{"p":"action","v":"unsubscribe","vt":"str"},{"p":"topic","v":"{\"topic\":\"123654\",\"qos\":0}","vt":"json"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","x":170,"y":560,"wires":[["ce21e6f7efcbbea1"]]},{"id":"b8542c59cc5a49bd","type":"mqtt out","z":"5d4fa2aa0a8f4fcf","name":"","topic":"","qos":"","retain":"","respTopic":"","contentType":"","userProps":"","correl":"","expiry":"","broker":"b68d71bd98332c07","x":370,"y":740,"wires":[]},{"id":"77600c8d5cc27a7e","type":"inject","z":"5d4fa2aa0a8f4fcf","name":"動態訂閱測試","props":[{"p":"topic","vt":"str"},{"p":"payload"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"123","payloadType":"date","x":180,"y":740,"wires":[["b8542c59cc5a49bd"]]},{"id":"b68d71bd98332c07","type":"mqtt-broker","name":"動態連接MQTT","broker":"127.0.0.1","port":"8888","clientid":"","autoConnect":false,"usetls":false,"protocolVersion":"4","keepalive":"60","cleansession":true,"birthTopic":"","birthQos":"0","birthPayload":"","birthMsg":{},"closeTopic":"","closeQos":"0","closePayload":"","closeMsg":{},"willTopic":"","willQos":"0","willPayload":"","willMsg":{},"sessionExpiry":""}]
