接口：USB
芯片：LoRa方案
尺寸：58*28mm
重量：47.6±0.1g

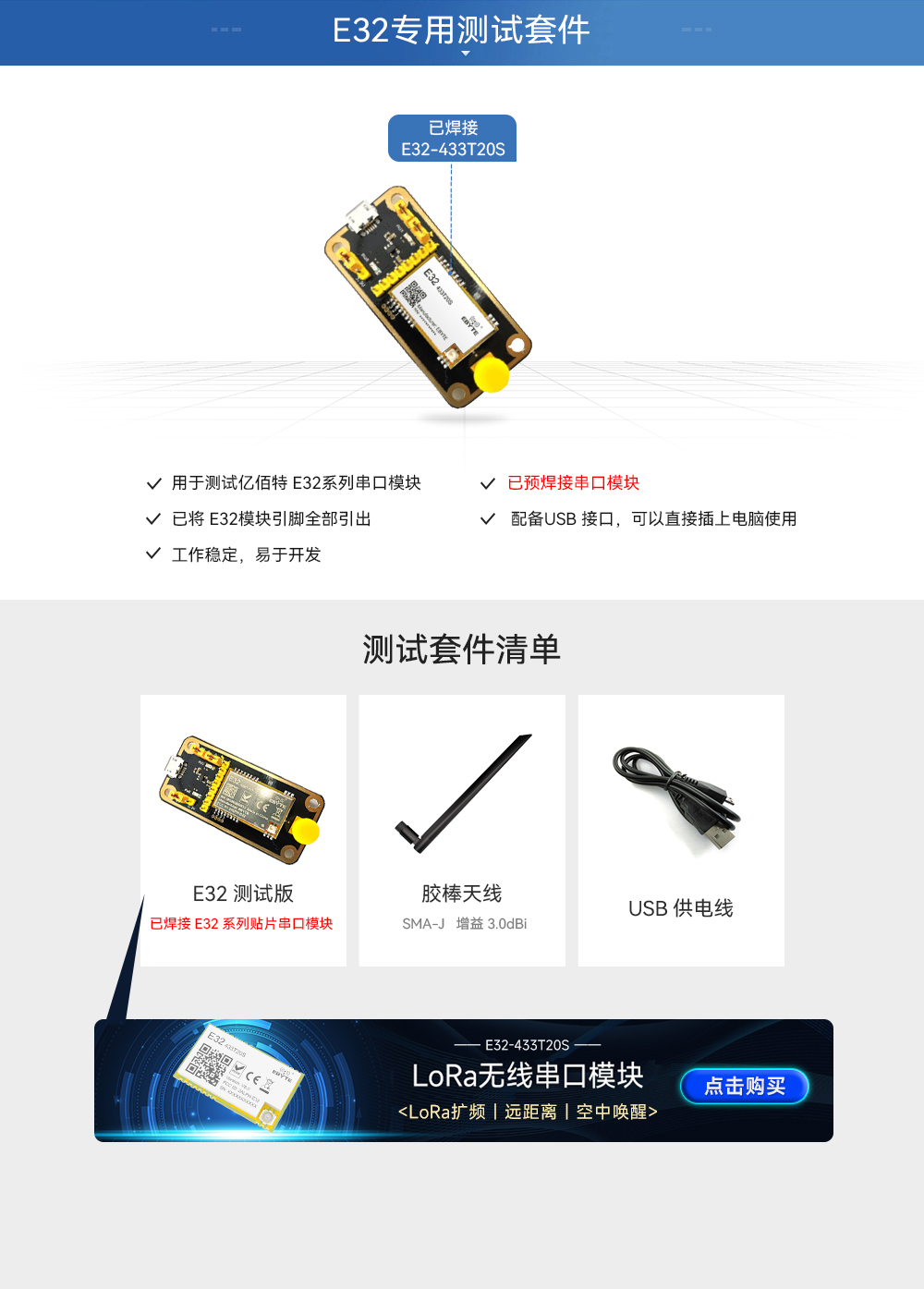

產品簡介：E32-433TBL-01 是系列貼片串口模塊結合 USB 轉 TTL 串口底板形成的成套測試產品，供客戶測試及開發，大大降低了客戶的測試及開發難度。本手冊描述測試底板如何使用更多詳細內容請查看 E32-433T20S 用戶手冊。
